TM-FAST-EI-MC

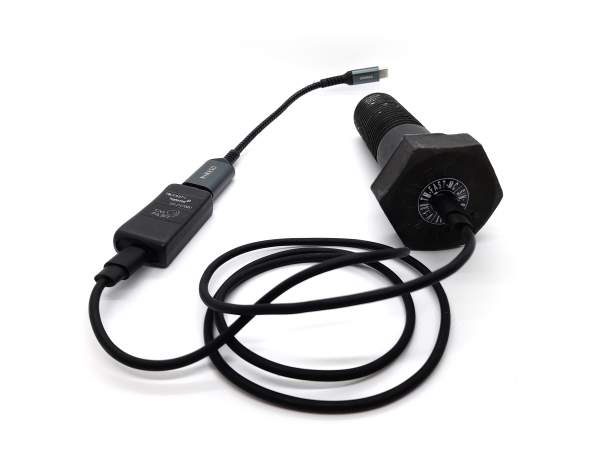

TM-FAST offers in its EI range, a wired instrumented screw integrating the sensitive element (strain sensor) in the screw head and a measurement conditioner (memory and measurement) outputting an analog signal. This version named MC incorporates a magnetic connector on the screw head. The TM-FAST-EI-MC works with the TM-FAST-EIAST dongle which offers an additional layer allowing filtering and conversion of the analog value into daN. This dongle offers a serial link via USB.

Download Data-sheet

When to use it? Technical specifications

The strain sensors can be applied to monitor strain changes in various structures for a very long period of time.

Strain sensors use the sensitivity of gauges to measure the intensity of tensile effects on the screw. The gauge is fixed inside the screw head minimizing the degradation of the mechanical strength of the screw. Computing intelligence is embedded in the screw head with built-in memory. the use of a dongle (TM-FAST-I) is required allowing the reading of the forces.
- 5 %FS hysteresis error
- Repeatability error0.2%
- FS Non-linearity error 0.5 %FS
- Temperature range -20/+100°C
- IP66 protection
- Smart dimensions: 34.5*13.5*5.8 mm without adaptable cable lengths (default: 1000mm *2)
- Applicable effort (adjustable)
-USB Output
- Magnetic connector

TM-FAST-EI-MC
