TM-FAST-TH-CO

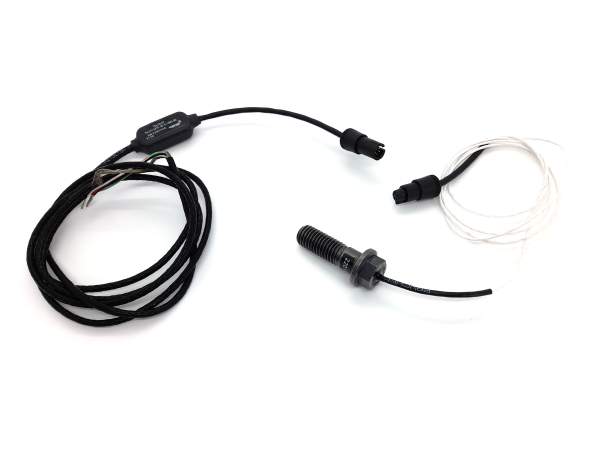

TM-FAST offers in its TH range a wired instrumented screw integrating the sensitive element (strain sensor) in the screw head and a remote measurement conditioner outputting a modular analog signal. This version named CO incorporates a binder connector between the screw head and the conditioner.

Download Data-sheet

When to use it? Technical specifications

The strain sensors can be applied to monitor strain changes in various structures for a very long period of time.

Strain sensors use the sensitivity of gauges to measure the intensity of tensile effects on the screw. The gauge is fixed inside the screw head minimizing the degradation of the mechanical strength of the screw.
- 5 %FS hysteresis error
- Repeatability error0.2%
- FS Non-linearity error 0.5 %FS
- Temperature range -20/+100°C
- IP66 protection
- Smart dimensions: 34.5*13.5*5.8 mm without adaptable cable lengths (default: 1000mm *2)
- Applicable effort (adjustable)
- 0-5V analog output
- Binder connector

TM-FAST-TH-CO
