TM-FAST-TH-EM

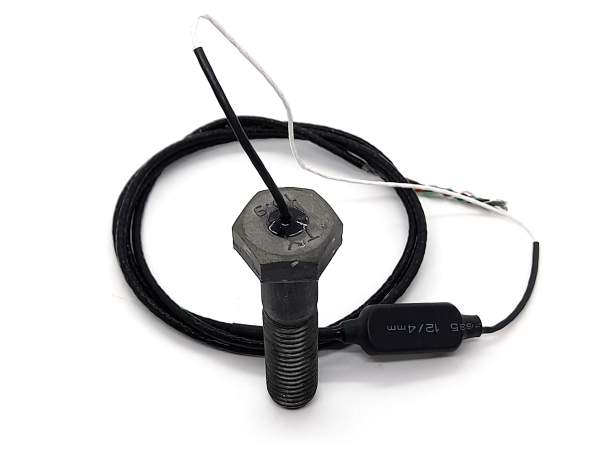

TM-FAST offers in its TH range a wired instrumented screw integrating the sensitive element (strain sensor) in the screw head and a remote measurement conditioner outputting a modulating analog signal. This version called EM remains wired which does not create a separation between the conditioner and the screw head.

Download Data-sheet

When to use it? Technical specifications

The strain sensors can be applied to monitor strain changes in various structures for a very long period of time.

Strain sensors use the sensitivity of gauges to measure the intensity of tensile effects on the screw. The gauge is fixed inside the screw head minimizing the degradation of the mechanical strength of the screw.
- 5 %FS hysteresis error
- Repeatability error0.2%
- FS Non-linearity error 0.5 %FS
- Temperature range -20/+100°C
- IP66 protection
- Smart dimensions: 34.5*13.5*5.8 mm without adaptable cable lengths (default: 1000mm *2)
- Applicable effort (adjustable)
- 0-5V analog output

TM-FAST-TH-EM
